Series Overview

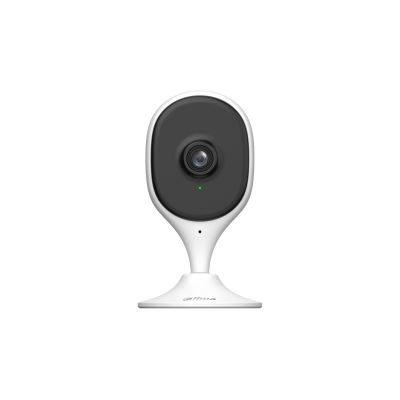

The Cube Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions including AI human and pet detection, privacy mode, and two-way talk. Information is synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized settings such as small-sized retail stores.
-
Camera Image Sensor 1/3.2″ CMOS Max. Resolution 2304 (H) × 1296 (V) Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Illumination Distance Up to 10 m (32.81 ft) (IR) Illuminator On/Off Control Auto Illuminator Number 1 (IR LED) Angle Adjustment Pan: 0° to 360°;
Tilt: -10° to 70°Lens Max. Aperture F2.0 Field of View H: 99°; V: 55°; D: 117° Intelligence Human Detection Yes Video Video Compression H.265 Video Frame Rate Main stream: 2304 × 1296@(1-25/30 fps)
sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Resolution 3M (2304 × 1296); nHD (640 × 360) Video Bit Rate H.265: 80 kbps–4096 kbps Day/Night Auto(ICR)/Color/B/W WDR DWDR Motion Detection Yes Image Rotation 0°/180° Audio Built-in MIC Yes, built-in Mic Built-in Speaker Yes, built-in speaker Audio Compression G.711a Network Wi-Fi IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G Storage Micro SD card (up to 256 GB) Management Software DMSS Mobile Client iOS;Android Certification Certifications CE Power Power Supply 5 VDC, 1 A Power Consumption Basic: 1.49 W;
Max.: 2.48 W (H.265+ IR intensity)Environment Operating Temperature –10 °C to +45 °C (14 °F to +113 °F) Operating Humidity ≤95% Structure Casing Material Plastic Product Dimensions Φ68 mm × 31.9 mm × 119.2 mm (2.68″ × 1.26″ × 4.69″) Net Weight 95 g (0.21 lb)
