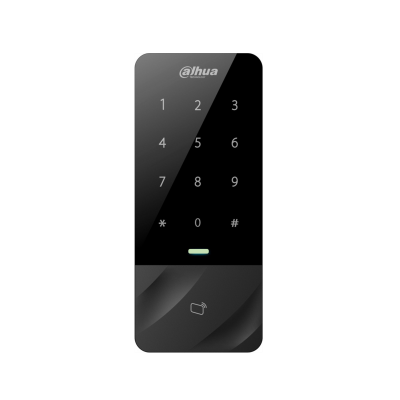

Control de acceso autónomo resistente al agua

System

Main Processor

32 Bit

Memory

16M

Input/Output Ports

Input

Door sensor x 1, Exit button x 1

Output

Relay x 1 (Door lock,)

Reader

Reader x 1

Card Read

Read Format

13.56MHz(Mifare)/125KHz(“-D” EM, Optional)

Read Range

3-6cm (max.)

Response Time

<0.1s

Capacity

Cardholders

30,000

Events

150,000

Function

User Management

General, VIP, Guest, Patrol, Black list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period Setting

Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods

Interface

To PC

RJ45(10/100M)

To Reader

Wiegand/ RS485

Genreal

RTC

Yes

Voice Prompt

No

Beep Tone

Buzzer

Keyboard

Sensitive touch keypad with blue backlight

Power Supply

9-15DC/200mA

Working Environment

-30°C~+60°C

Working Humidity

=95%

Dimension(W×D×H)

62*23*142mm

Weight

0.5Kg
