| Versión del modelo |

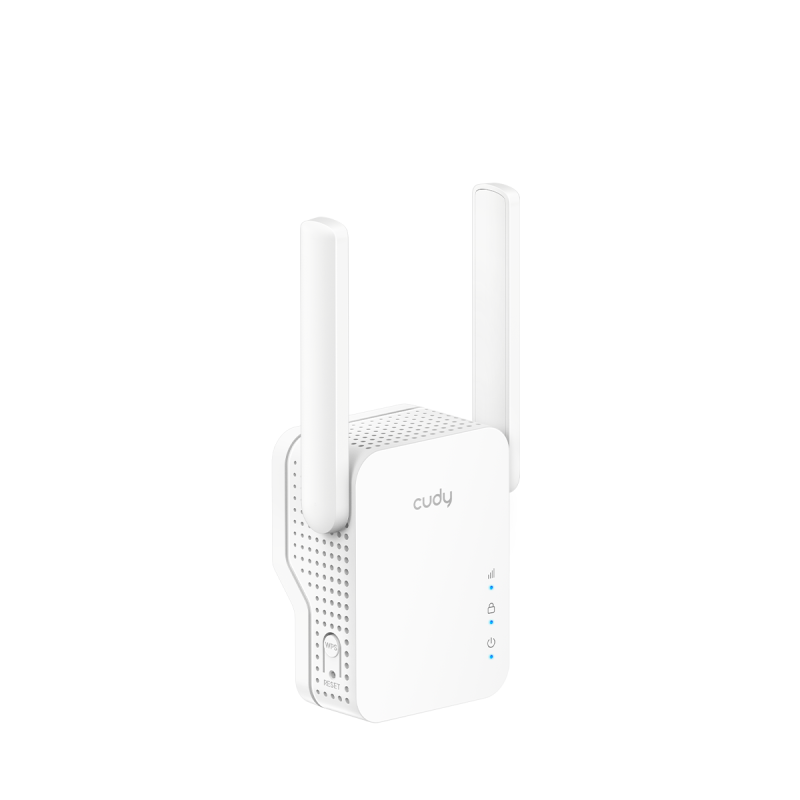

RE300 1.0 |
| Memory/Storage |
Flash/ROM |
8 MB (64 Mbit ) NOR |
|
DDR/RAM |
64 MB (512 Mbit) DDR2 |
| Wireless |
2.4 GHz Wi-Fi Speed |
300 Mbps |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
2× Fixed |
|
FEM or PA/LNA |
2.4 GHz: 2× Internal |
|
Range Performance |
Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
Wall Performance |
One wooden walls with thickness < 10 cm (4»)
One concrete wall with thickness < 10 cm (4») |
| Interfaces |
10/100 Mbps RJ45 Ports |
1 |
|
Ethernet Notes |
1× LAN Port |
|
LED |
- Signal Strength
- WPS
- Power
|
|
Physical Buttons |
|
|
Power Input |
AC Plug |
|
Power Input Note |
EU, US, UK plug are available on corresponding region versions |
| Power |
Power Methods |
AC |
|
AC |
100V ~ 240V |
| Reliability |
Environment |
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
|
| Certifications |
FCC, CE |
| Mechanical |
Install in a Daisy Chain |
Recommend to install less than 3 repeaters in a wireless chain. |
|
Installation |
Plug-In-Socket |
|
Dimension |
80×60×38 mm
3.15×2.36×1.5 inches |
| Package Content |
|
| Ordering Information |
Retail Package Dimension |
74×84×107 mm
2.91×3.31×4.21 inches |
|
Units per Carton |
60 |
|
Carton Dimension |
40.1×36×34.6 cm
15.79×14.17×13.62 inches |
